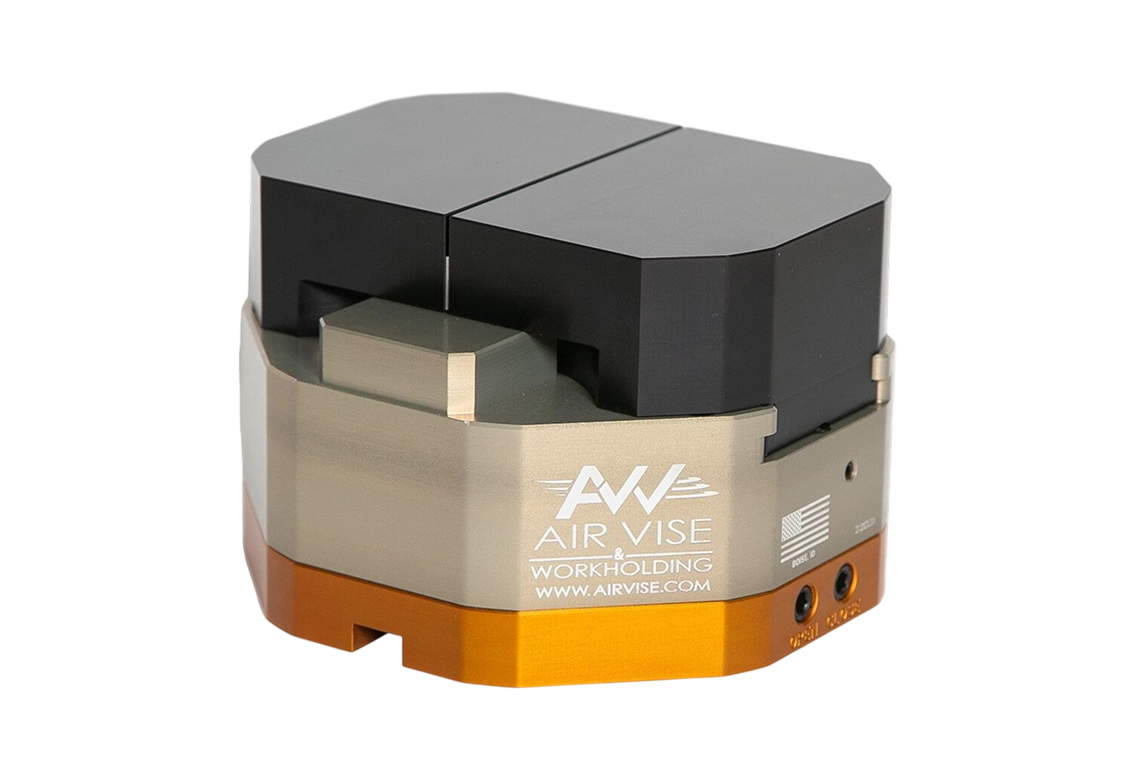

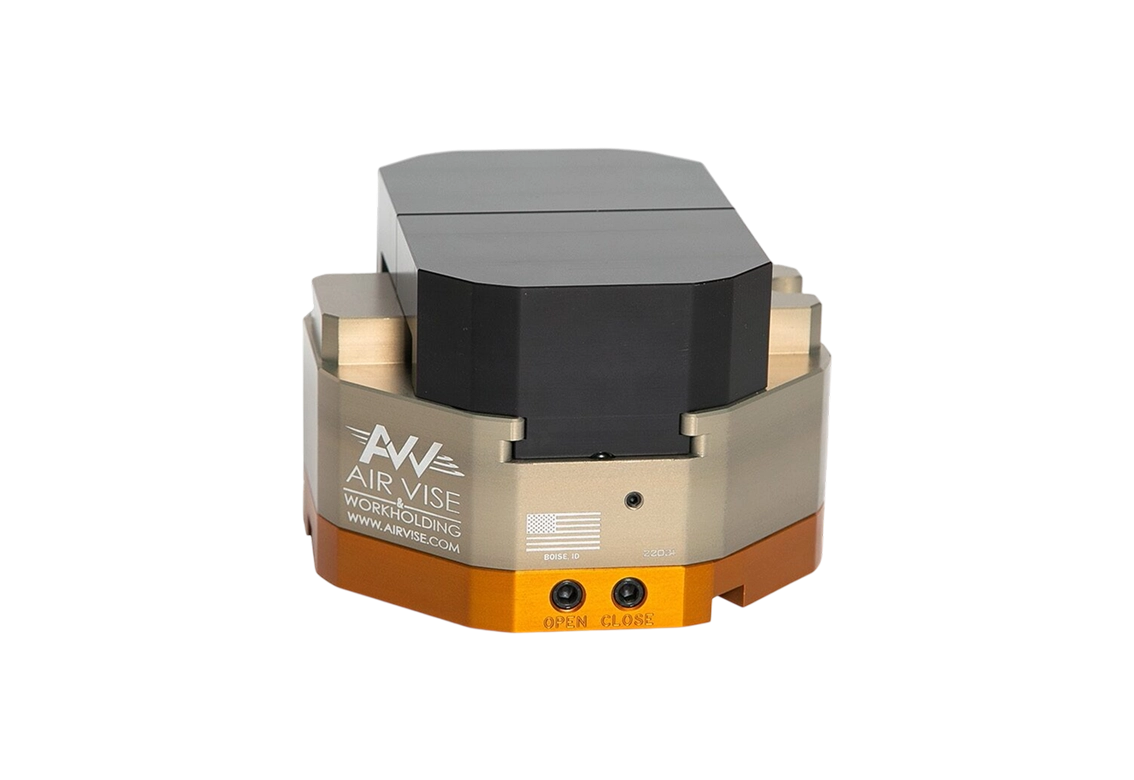

Rotary Vise 4in.
Air Vise & Workholding
$1750.00
Deliver by 15th June
Pneumatic precision self-centering rotary vise for 4th axis CNC machining with T-Hook quick-release mechanism.
Product Description
The AV-R-4 Rotary Vise is a precision pneumatic workholding solution designed for 4th axis machining operations.
Made from 7075 T-6 hard anodized aluminum, it features a unique T-Hook mechanism for quick jaw disengagement and rapid workpiece changeovers.
With one-touch open/close operation, it delivers reliable, repeatable clamping without requiring modifications to existing fixtures.
The vise offers adjustable O/D and I/D clamping force, optimized chip evacuation, and seamless integration with robotic controls or M-codes.
Made from 7075 T-6 hard anodized aluminum, it features a unique T-Hook mechanism for quick jaw disengagement and rapid workpiece changeovers.
With one-touch open/close operation, it delivers reliable, repeatable clamping without requiring modifications to existing fixtures.
The vise offers adjustable O/D and I/D clamping force, optimized chip evacuation, and seamless integration with robotic controls or M-codes.
Weight
0 kg
Dimensions
6.000 in x 6.000 in (footprint)
Material
7075 T-6 Hard Anodized Aluminum
Footprint
6.000 in x 6.000 in
Jaw Width
4.000 in
Throat Depth
15/16 in
Material
7075 T-6 Hard Anodized Aluminum

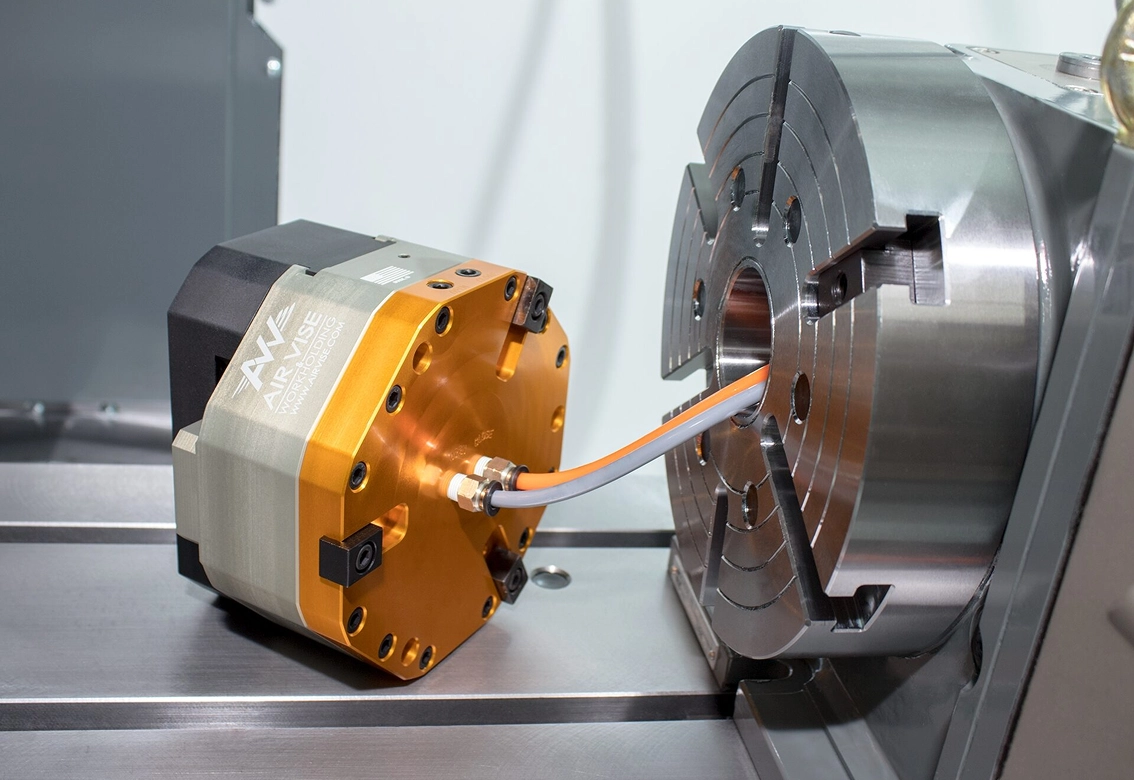

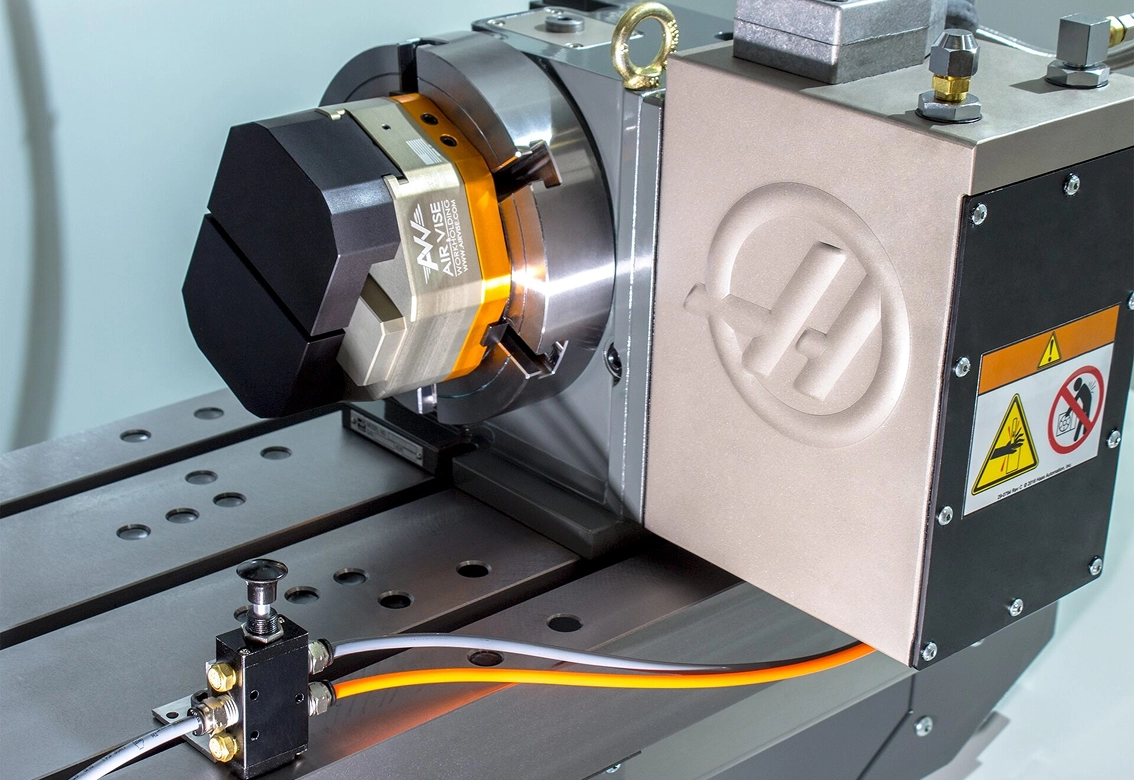

Keyways fit Haas HRT160 and HRT210 rotary platters
Yes
Includes workholding hardware, fixture keys, jaw shim and fittings
Yes
STEP file available for download
Yes
Quick Self-Centering operation
T-Hook mechanism for rapid jaw disengagement
One-touch open/close feature
7075 T-6 Hard Anodized construction
Soft Jaws included
Adjustable, consistent, repeatable O/D and I/D clamping force
Easy integration with robotic command controls or M-codes
Small footprint design
Optimized for chip evacuation
No modifications required to existing fixturing
Made in the U.S.A.
